PRISM TSE 24 MC

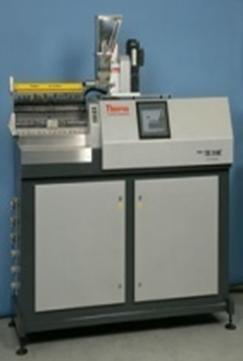

A floor standing, PRISM 24mm twin screw extruder, with horizontally split modular barrel and twin co-rotating, intermeshing 24mm screws, of process length 28:1 & 40:1 L/D. The extruder is supplied complete with a variable speed drive system with PLC-based control system with touch screen interface. PRISM TSE24MC

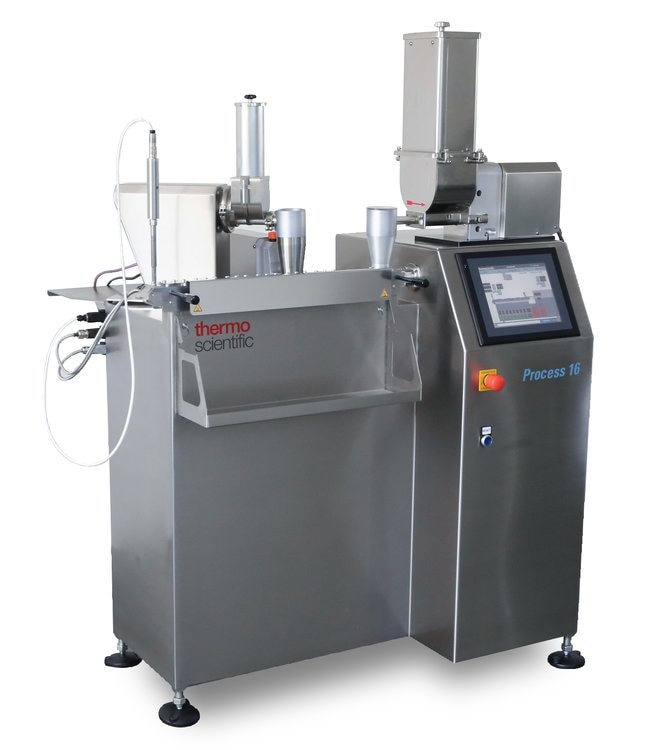

16mm Modular Twin Screw Extruder
Barrel Features

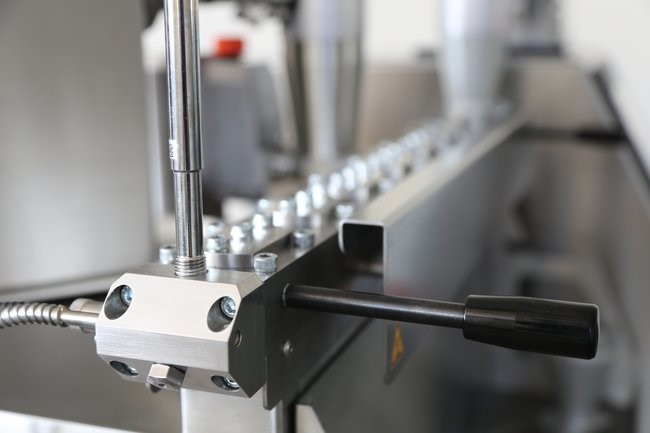

A horizontally split barrel, 25:1 or 40:1 L/D gives easy access toscrews for cleaning and configuration changes.
Fuzzy logic heater controls save energy.
The segmented top barrel half is constructed in 4:1 modules with easy reconfiguration.

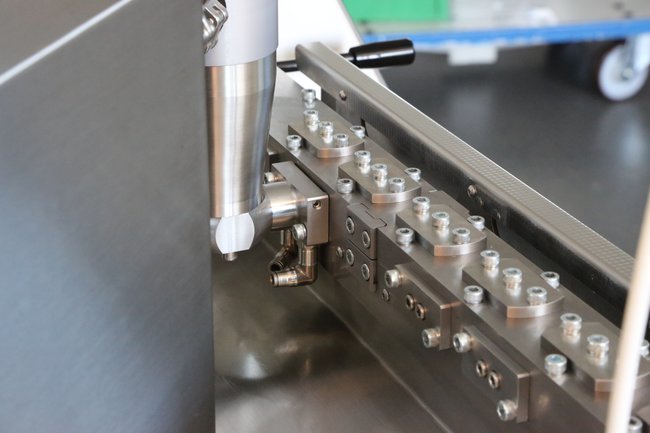

Barrel segments are available for feeding solids and liquids, o venting.
Control Features
A rugged touch screen control incorporates data acquisition and recipe storage as standard, with option to download to a remote computer for archiving and analysis.
Speed and Torque Control
The Digital Servo drive accurately ontrols speed and torque of the sealed, low maintenance, brushless motor 1.25 kW motor at 500 rpm or 2.5kW at 1000 rpm screw speed.
Ancillary Equipment
Thermo Electron offers a full system of ancillary equipment to integrate with the EUROLAB extruder, inluding pre-mixers, screen changers, chill rolls, air-cooled pelletising systems and cast sheet or blown film lines.








Thermo Scientific Process 11 & HAAKE MiniJet
New Process 11 Parallel Twin-Screw Extruder Optimize your time and money spent developing formulations for polymer, pharma  and food products with the Thermo Scientific™ Process 11 Parallel Twin-Screw Extruder.  Requiring only a small amount of material to conduct experiments, this parallel co-rotating extruder allows you to conduct numerous trials efficiently and cost effectively.

Requiring just 20 grams of material per hour, the new Thermo Scientific
Process 11 small-scale extruder is designed to meet the key challenges
faced by research and development formulation scientists.

Applications
Polymer research & development
Expensive material incorporation

Nano compound processing

Key Benefits:
A horizontally split barrel, 25:1 or 40:1 L/D gives easy access toscrews for cleaning and configuration changes.
Fuzzy logic heater controls save energy.
The segmented top barrel half is constructed in 4:1 modules with easy reconfiguration.
Barrel segments are available for feeding solids and liquids, o venting.
Small

The only real bench-top compounder
available on the market (no hidden electric
cabinet) maximizes the usage of the available lab space.

Minimized material usage. Throughput rates of 20 g/h to 2.5 kg/h with realistic processing conditions.

Simple

Easy-to-operate by intuitive touch screen control.

Integrated feeder control.

Easy cleaning due to clam shell barrel design with removable top half barrel.

Scalable

Direct scalable processing conditions, due
to portfolio wide similar screw geometry.

Transfers knowledge obtained in the lab to pilot and production scale processes.

Segmented screw design with common screw element types.



Hot melt extrusion is gaining importance in the pharmaceutical industry. Our 11 mm compounder is also addressing the specific needs in the pharmaceutical industry and is available as a pharma version, too –manufactured according to GMP standards.
